Product Specifications
WalnutPi 1st generation is based on the Allwinner H616/H618 quad-core 64-bit Cortex-A53 high-performance processor.

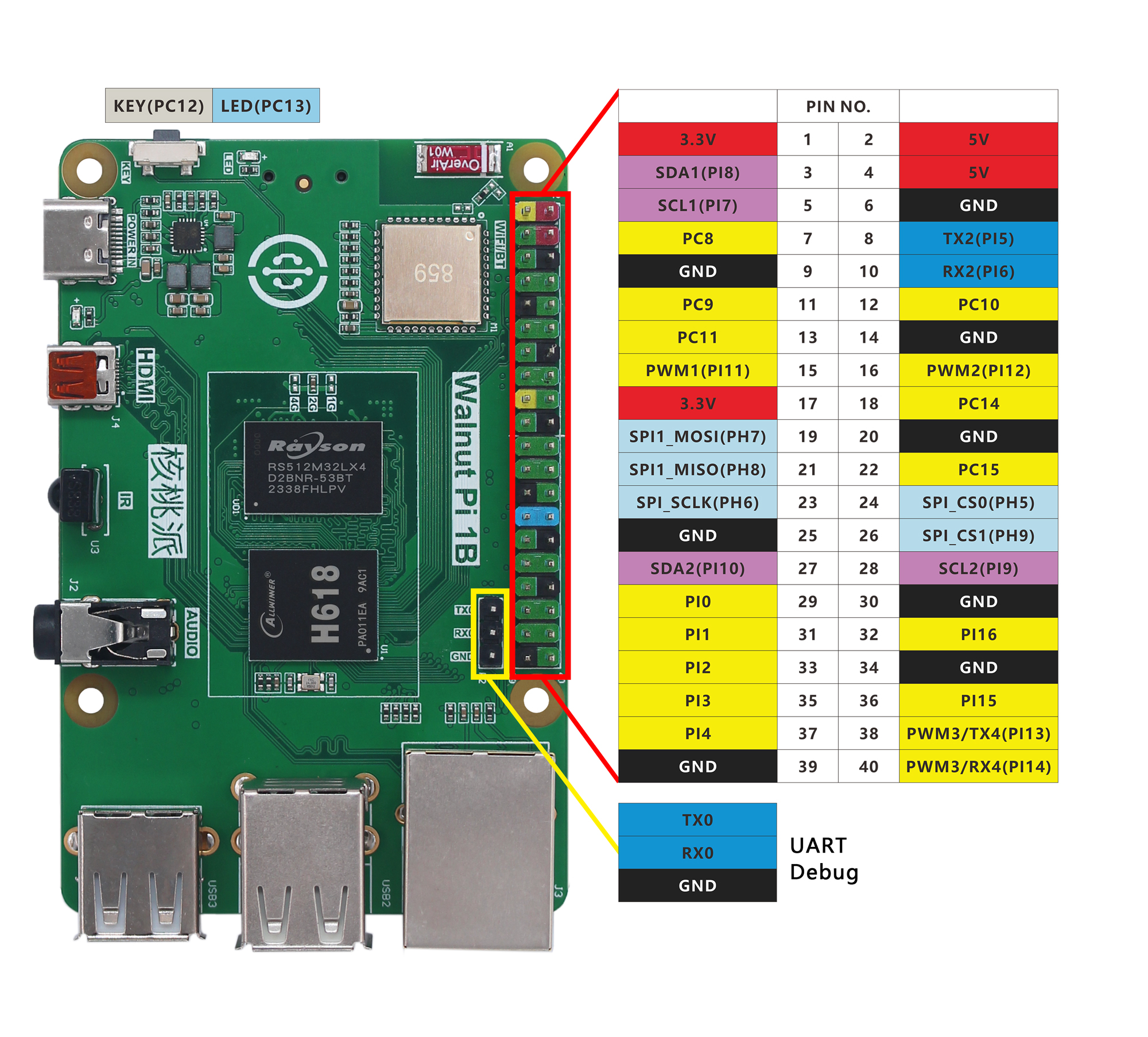

WalnutPi 1B
Feature Overview
1G/2G/4G LPDDR4 RAM Versions:
H616 + DDR3 (1GB) Version: [Discontinued]
Detailed Specifications
| Product Specs | |
|---|---|
| CPU | Allwinner H618 64-bit / Quad-core high-performance Cortex-A53 processor, 1.5GHz |
| GPU | Mali G31 MP2 Supports OpenGL ES 1.0/2.0/3.2, OpenCL 2.0 |
| RAM (Optional) | ● 1GB (LPDDR4) ● 2GB (LPDDR4) ● 4GB (LPDDR4) |
| Storage | ● MicroSD card up to 512GB ● Reserved SPI Flash (unpopulated) |
| Wireless | Dual-band WiFi (2.4G & 5G) + Bluetooth 5.0 |
| Wired Network | 100Mbps Ethernet port |
| Audio Output | 3.5mm audio jack |
| Video Output | MicroHDMI 2.0a, supports 4K@60fps |
| Peripherals | ● USB 2.0 x 3 ● IR receiver x 1 ● Button x 1 ● LED x 1 ● 40-Pin GPIO header (Raspberry Pi compatible) ● 3-Pin UART (serial) debug header |
| Power | Type-C port, 5V/1A input |
| OS | WalnutPi OS (Debian), Ubuntu 22.04, Home Assistant, Android |
| Physical Specs | |
|---|---|
| Dimensions | 85 x 56 x 21mm (PCB size) |
| Weight | 38g (bare board) |
Dimensions

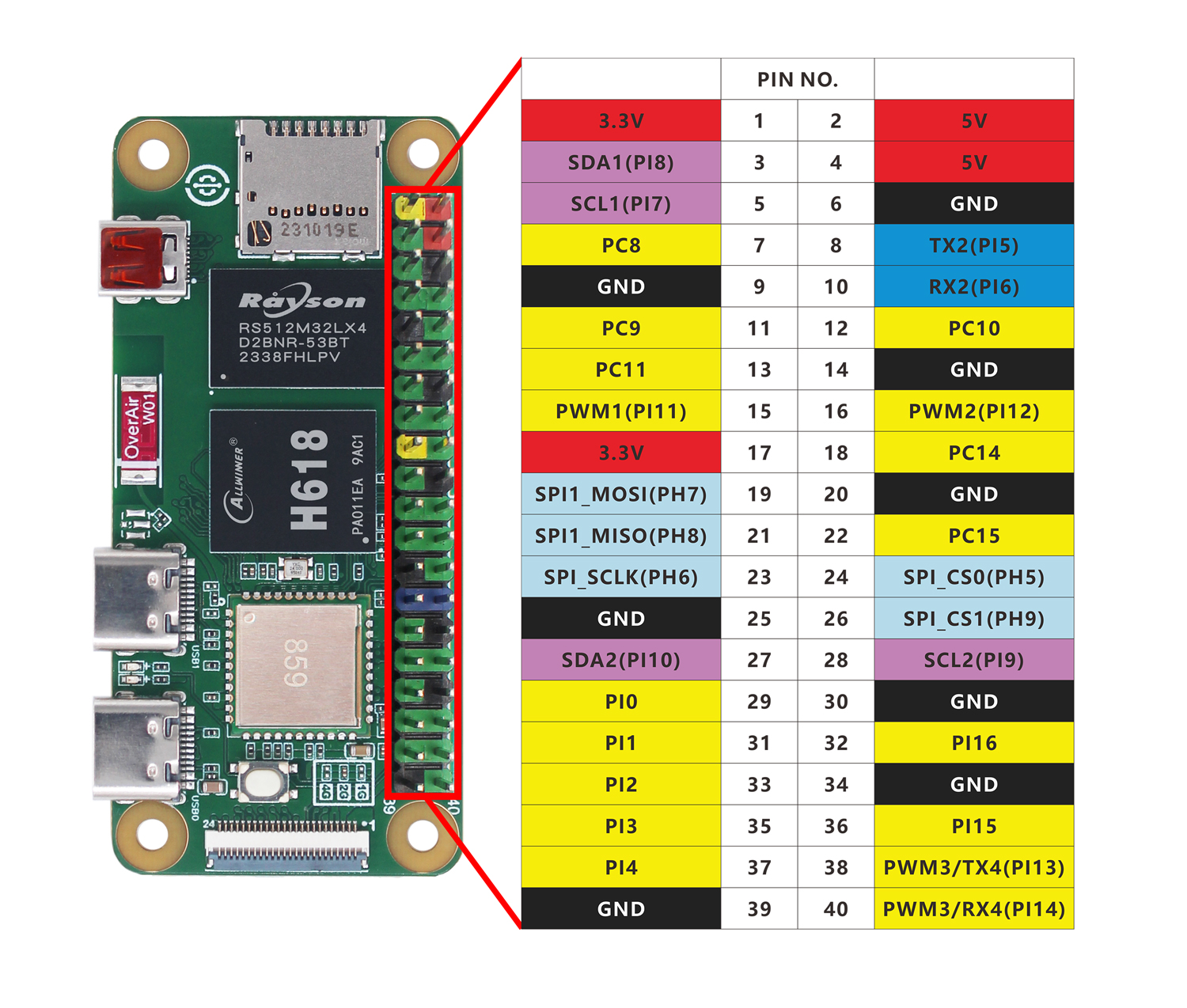

WalnutPi ZeroW

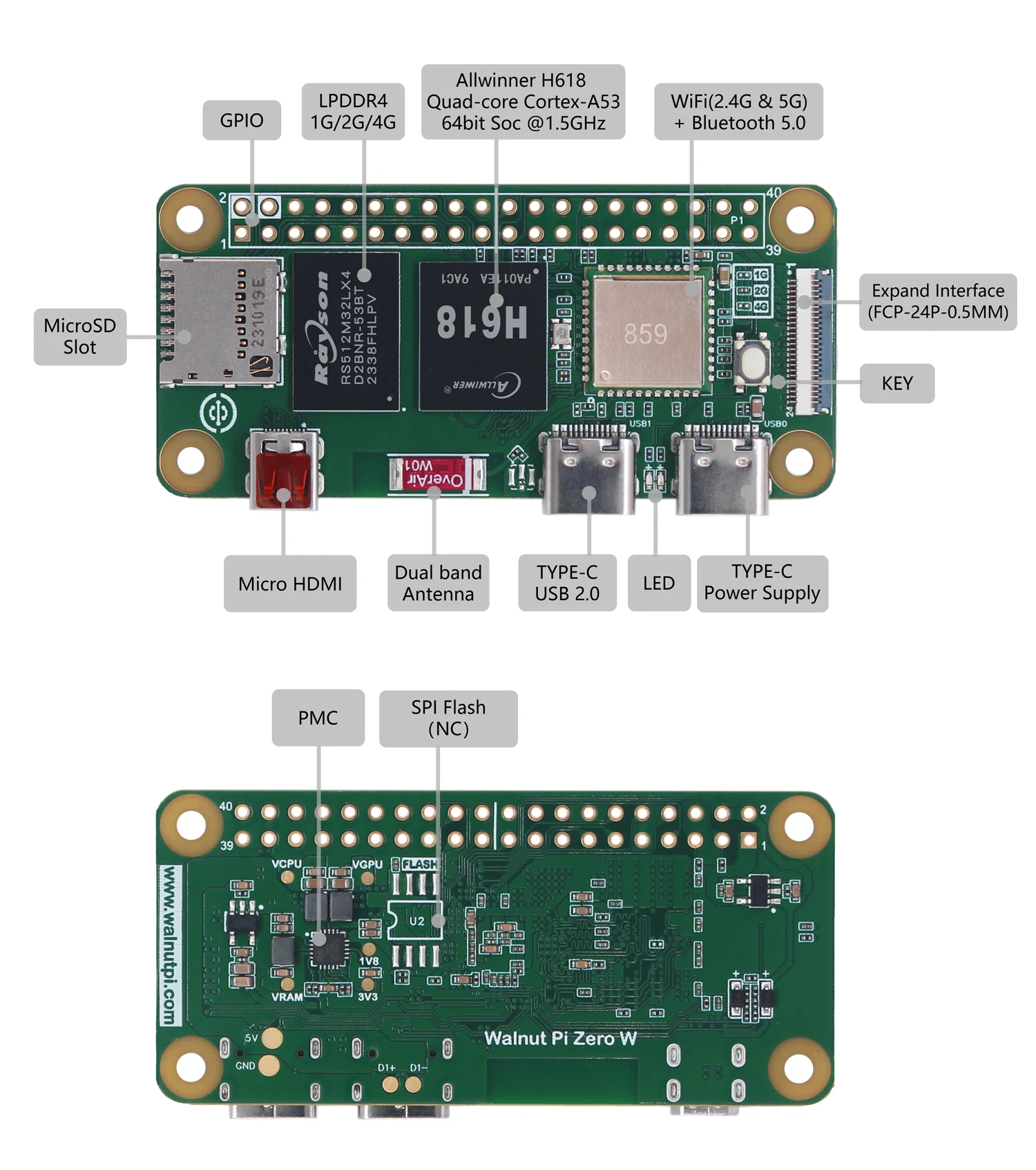

Feature Overview
Detailed Specifications
| Product Specs | |
|---|---|
| CPU | Allwinner H618 64-bit / Quad-core high-performance Cortex-A53 processor, 1.5GHz |
| GPU | Mali G31 MP2 Supports OpenGL ES 1.0/2.0/3.2, OpenCL 2.0 |
| RAM | 1GB / 2GB / 4GB LPDDR4 (Optional) |
| Storage | ● MicroSD card up to 512GB ● Reserved SPI Flash (unpopulated) |
| Wireless | Dual-band WiFi (2.4G & 5G) + Bluetooth 5.0 (Onboard dual-band high-gain ceramic antenna, optional external ipex4) |
| Video Output | MicroHDMI 2.0a, supports 4K@60fps |
| Peripherals | ● USB 2.0 x 1 (Type-C) ● Button x 1 ● LED x 1 ● 40-Pin GPIO header (Raspberry Pi compatible) |
| FPC Connector | ● USB 2.0 x 2 ● IR receiver x 1 ● Audio ● 100Mbps Ethernet ● Debug serial (UART) ● Power output (5V and 3.3V) |
| Power | Type-C port, 5V/1A input |
| OS | WalnutPi OS (Debian), Ubuntu 22.04, Home Assistant, Android |
| Physical Specs | |
|---|---|
| Dimensions | 65 x 30 x 5mm (PCB size) |
| Weight | 8.5g (bare board) |

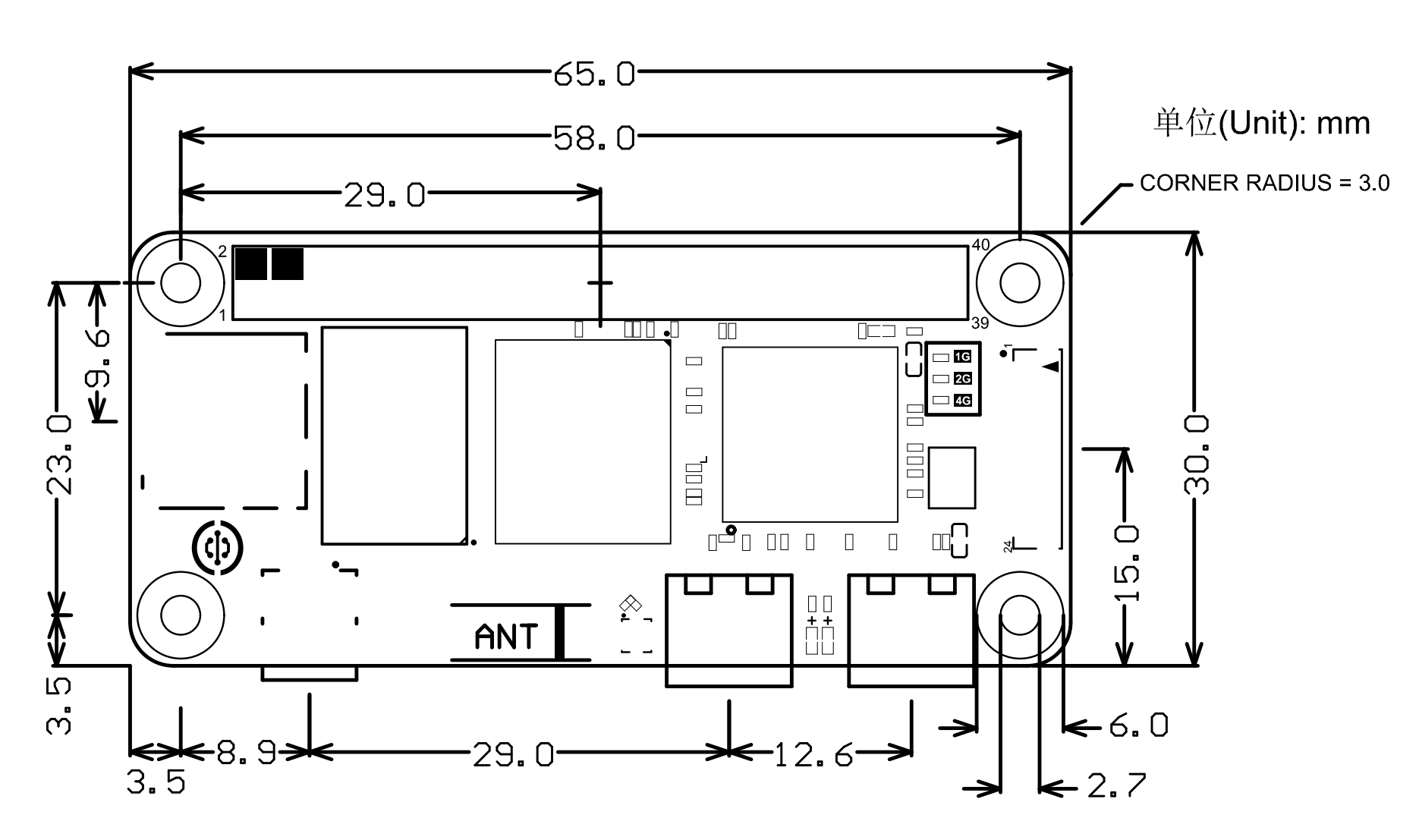

Dimensions

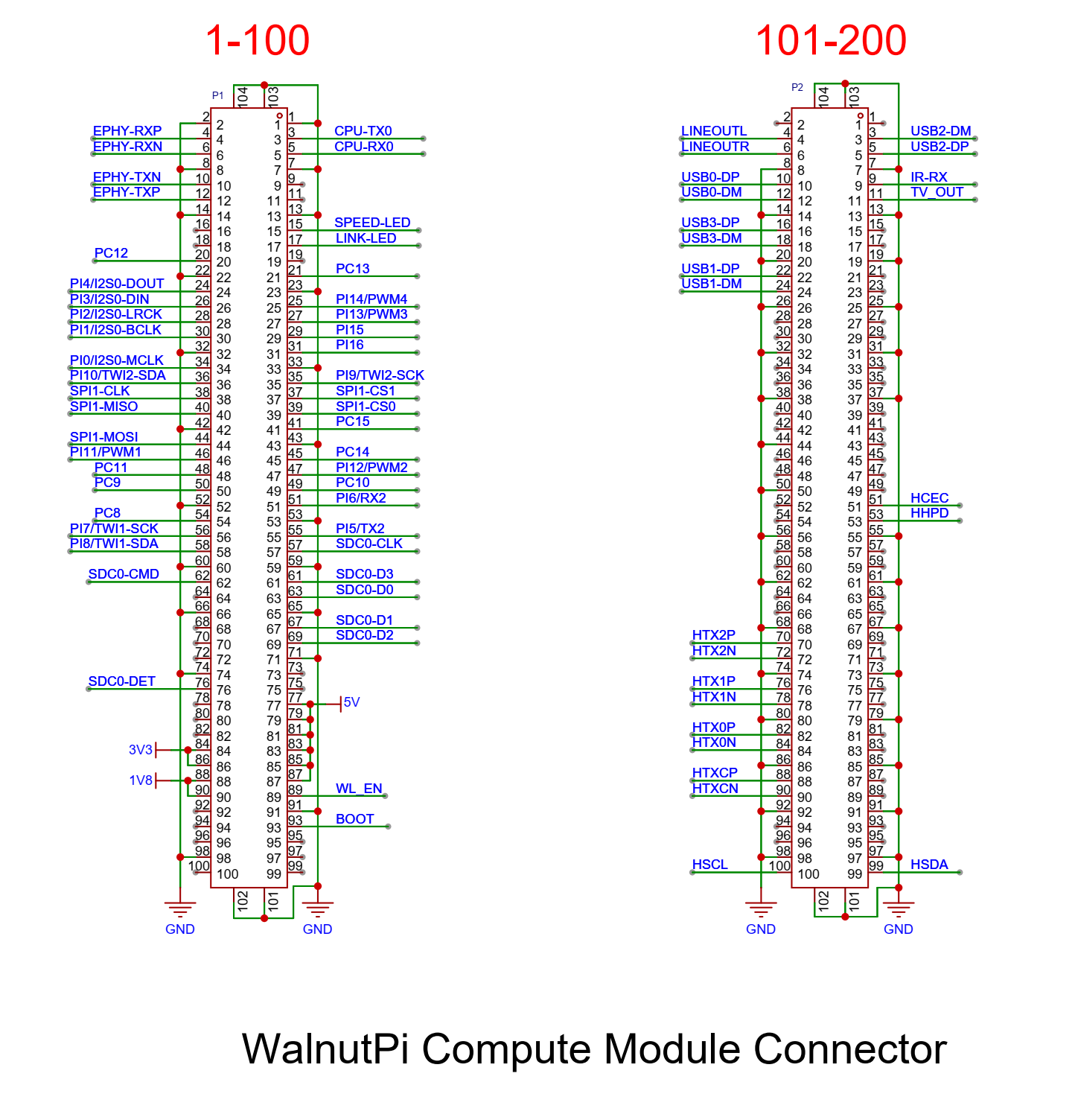

WalnutPi CM1
Feature Overview
- CM1 Standard Version
- CM1 EMMC Version
Note
The CM1 EMMC version occupies pins PC8, PC9, PC10, PC11, PC14, and PC15 on the WalnutPi 40-Pin GPIO.
Detailed Specifications
| Product Specs | |
|---|---|
| CPU | Allwinner H618 64-bit / Quad-core high-performance Cortex-A53 processor, 1.5GHz |
| GPU | Mali G31 MP2 Supports OpenGL ES 1.0/2.0/3.2, OpenCL 2.0 |
| RAM | 1GB / 2GB / 4GB LPDDR4 (Optional) |
| Storage | ● MicroSD card up to 512GB (via BTB connector) ● EMMC Flash 0GB/32GB optional (other capacities available for custom orders) ● Reserved SPI Flash (unpopulated, for non-EMMC versions) |
| Wireless | Dual-band WiFi (2.4G & 5G) + Bluetooth 5.0 (Onboard dual-band high-gain ceramic antenna, optional external ipex4) |
| Peripherals (BTB Connector) | ● Video Output: MicroHDMI 2.0a, supports 4K@60fps ● Audio ● 100Mbps Ethernet ● USB 2.0 x 3 ● IR receiver x1 ● Button x 1 ● LED x 1 ● 40-Pin GPIO header (Raspberry Pi compatible) ● Debug serial (UART) ● BOOT pin ● Power input (5V) |
| Power | Type-C port, 5V/1A input |
| OS | WalnutPi OS (Debian), Ubuntu 22.04, Home Assistant, Android |
| Physical Specs | |
|---|---|
| Dimensions | 55 x 40 x 5mm |
| Weight | 8.5g (bare board) |
Dimensions
WalnutPi BOX
WalnutPi BOX is composed of a CM1 compute module and an IO expansion board. It can be connected to a 0.96-inch OLED display (I2C), enclosure, and cooling fan.
Feature Overview
WalnutPi BOX

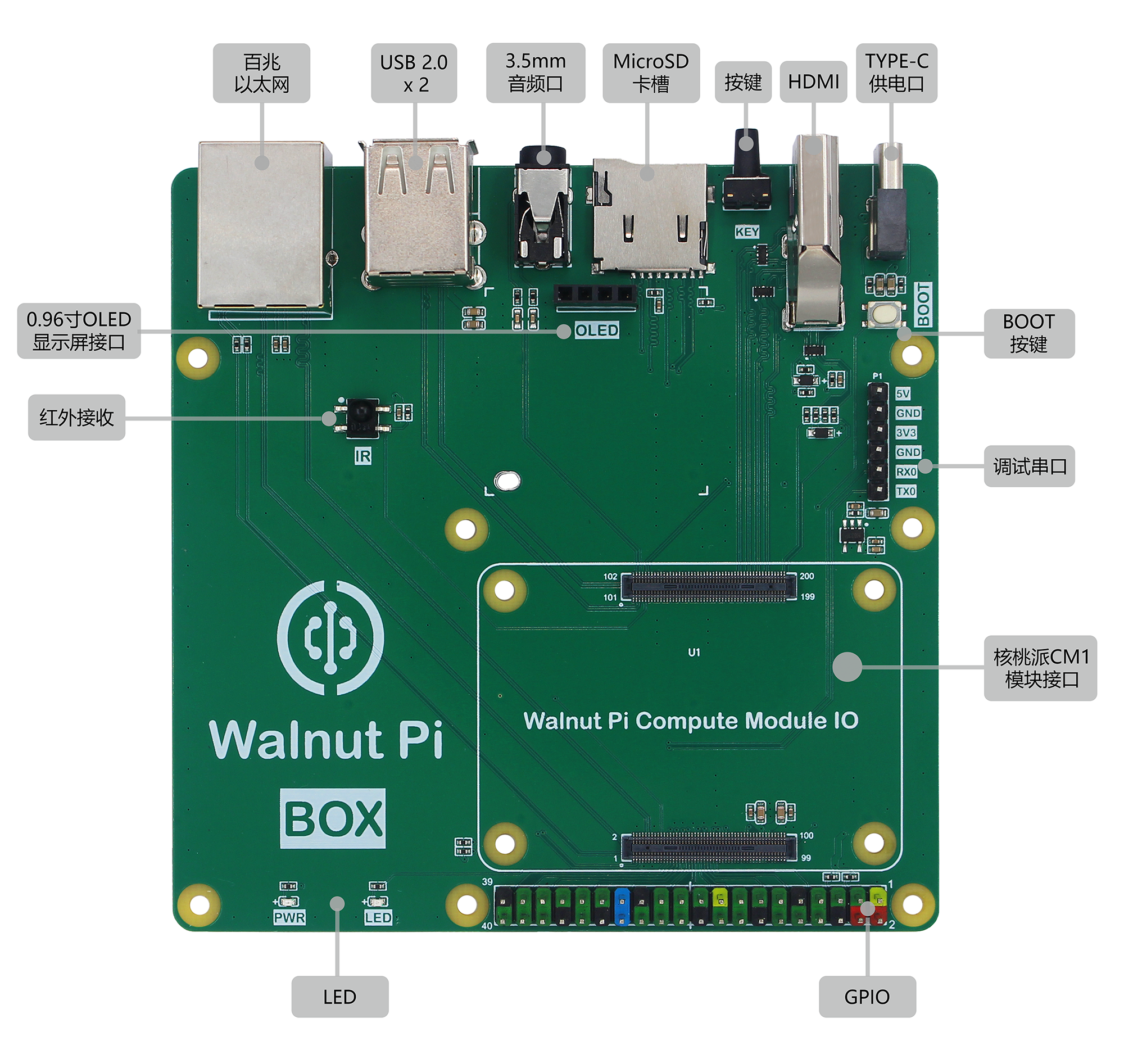

IO Expansion Board
Detailed Specifications
| Product Specs | |
|---|---|
| CPU | Allwinner H618 64-bit / Quad-core high-performance Cortex-A53 processor, 1.5GHz |
| GPU | Mali G31 MP2 Supports OpenGL ES 1.0/2.0/3.2, OpenCL 2.0 |
| RAM | 1GB / 2GB / 4GB LPDDR4 (Optional) |
| Storage | ● MicroSD card up to 512GB ● Reserved SPI Flash (unpopulated) |
| Wireless | Dual-band WiFi (2.4G & 5G) + Bluetooth 5.0 (Onboard dual-band high-gain ceramic antenna, optional external ipex4) |
| Wired Network | 100Mbps Ethernet port |
| Audio Output | 3.5mm audio jack |
| Video Output | HDMI 2.0a, supports 4K@60fps |
| Peripherals | ● USB 2.0 x 2 ● IR receiver x 1 ● Button x 1 ● LED x 1 ● 40-Pin GPIO header (Raspberry Pi compatible) ● 3-Pin UART (serial) debug header ● 0.96-inch OLED display interface (I2C) |
| Power | Type-C port, 5V/1A input |
| OS | WalnutPi OS (Debian), Ubuntu 22.04, Home Assistant, Android |
| Physical Specs | |
|---|---|
| Dimensions | 100 x 100 x 21 mm (without enclosure) 105 x 105 x 33.6 mm (with enclosure) |
| Weight | 67.5g (without enclosure) |
Dimensions
