Drawing Shapes

In this section, we'll learn about PyQt5 drawing features using the drawing functions under the QPainter object.

Function Introduction

Drawing a Point

drawPoint(x, y)

Draw a point.

• x : X-coordinate
• y : Y-coordinate

Drawing a Line

drawLine(x0, y0, x1, y1)

Draw a straight line.

• x0, y0 : Starting coordinates
• x1, y1 : Ending coordinates

Drawing a Rectangle

drawRect(x, y, width, height)

Draw a rectangle.

• x, y : Starting coordinates
• width : Rectangle width
• height : Rectangle height

Drawing an Ellipse (Circle)

drawEllipse(x, y, width, height)

Draw an ellipse.

• x, y : Starting coordinates
• width : Ellipse width
• height : Ellipse height

When the ellipse's width equals height, it becomes a circle, where width = height = diameter of the circle.

Programming Method

Let's implement code to draw points, lines, rectangles, and circles:

We'll run the final code first, then explain:

# -*- coding: utf-8 -*-

# pyQT5 For WalnutPi

from PyQt5 import QtCore, QtGui, QtWidgets

from PyQt5.QtCore import Qt
from PyQt5.QtGui import QPainter,QPen,QBrush
from PyQt5.QtWidgets import QWidget

class Window(QWidget):

    def __init__(self):
        super().__init__() # Execute the parent QWidget's __init__ as well
        self.setWindowTitle("WalnutPi Paint") # Set window title
        self.resize(480,320) # Set window size

        # Window background color setting
        self.setObjectName("Paint_Window")
        self.setStyleSheet("#Paint_Window{background-color: black}") # Black

    def paintEvent(self,event):

        painter=QPainter(self) # Create drawing object
        painter.setPen(Qt.green) # Set pen, green

        # Draw point
        painter.drawPoint(10,10)

        # Draw line
        painter.drawLine(20, 10, 80, 10)

        # Draw rectangle
        painter.drawRect(100, 10, 80, 40)

        # Draw circle
        painter.drawEllipse(200, 10, 50, 50)


#################
#   Main Code    #
#################
import sys

# [Optional] Allow Thonny remote execution
import os
os.environ["DISPLAY"] = ":0.0"

# [Optional] Fix display issues on 2K+ resolution monitors
QtCore.QCoreApplication.setAttribute(QtCore.Qt.AA_EnableHighDpiScaling)

# Main program entry — build and display the window
app = QtWidgets.QApplication(sys.argv)
window = Window() # Create window object
window.show() # Show window
#window.showFullScreen() # Full-screen display

# [Recommended] Allow Ctrl+C to interrupt the window from terminal for easier debugging
import signal
signal.signal(signal.SIGINT, signal.SIG_DFL)
timer = QtCore.QTimer()
timer.start(100)  # You may change this if you wish.
timer.timeout.connect(lambda: None)  # Let the interpreter run each 100 ms

sys.exit(app.exec_()) # Exit the process when the window is closed

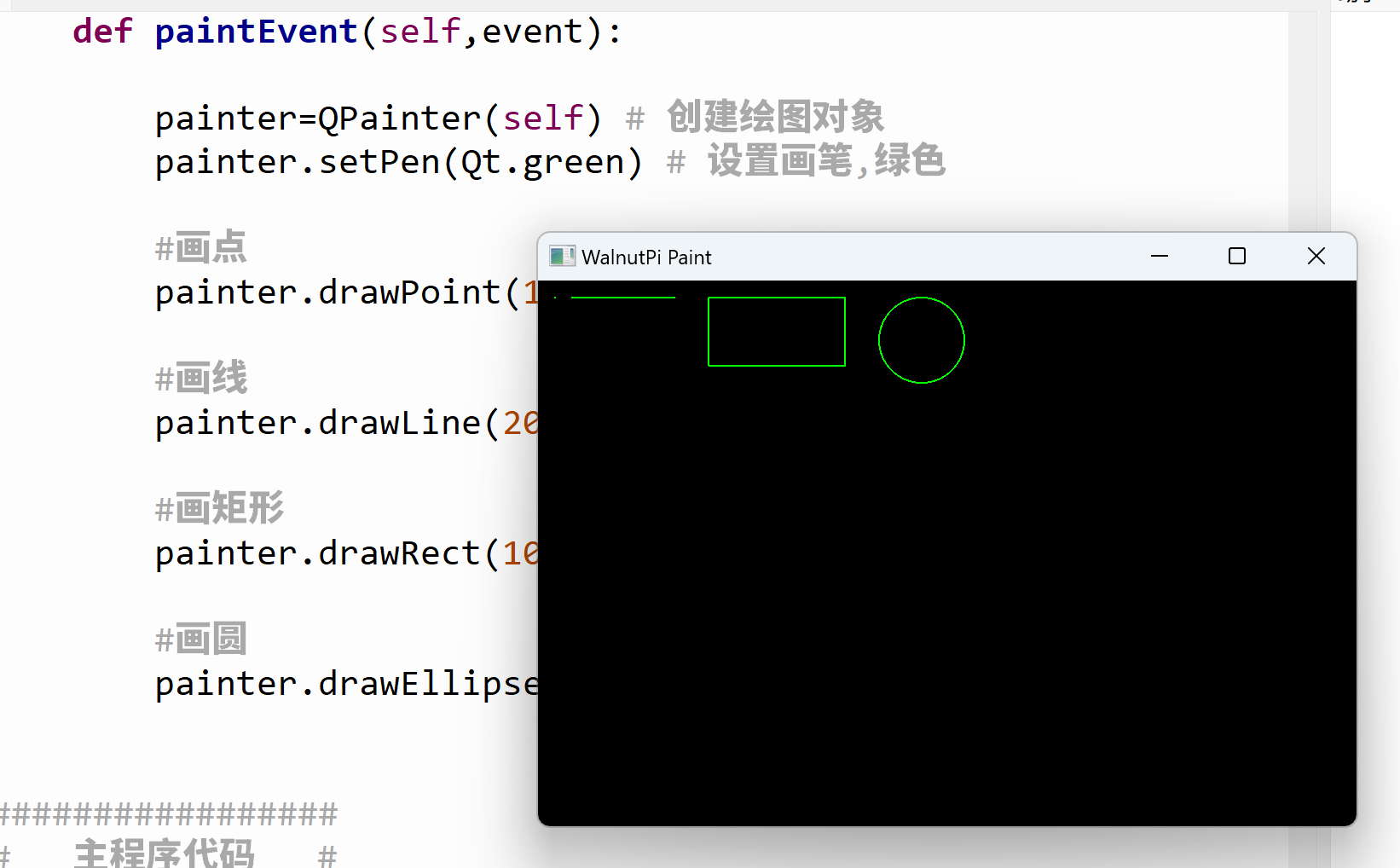

Run the code and you'll see the window as follows:

Now let's examine how the code works:

The main program entry code is similar to before — it creates a window:

# Main program entry — build and display the window
app = QtWidgets.QApplication(sys.argv)
window = Window() # Create window object
window.show() # Show window

The newly created window initializes the window title and size, and also sets the background color to black for better visibility of the result:

class Window(QWidget):

    def __init__(self):
        super().__init__() # Execute the parent QWidget's __init__ as well
        self.setWindowTitle("WalnutPi Paint") # Set window title
        self.resize(480,320) # Set window size

        # Window background color setting
        self.setObjectName("Paint_Window")
        self.setStyleSheet("#Paint_Window{background-color: black}") # Black

def paintEvent(self,event): is a fixed-form method — it is automatically called after the window is constructed. So all QPainter object initialization and drawing functions are placed inside it:

    def paintEvent(self,event):

        painter=QPainter(self) # Create drawing object
        painter.setPen(Qt.green) # Set pen, green

        # Draw point
        painter.drawPoint(10,10)

        # Draw line
        painter.drawLine(20, 10, 80, 10)

        # Draw rectangle
        painter.drawRect(100, 10, 80, 40)

        # Draw circle
        painter.drawEllipse(200, 10, 50, 50)
