I2C
Configuring Pins
Finding I2C Pins on the Board
For easy lookup, we've added a feature to display functional pin positions. Run the following command to see how many I2C buses are available on the board's 40-pin header:
gpio pin i2c
Enabling I2C
We use the set-device command to enable/disable the underlying driver for a specified device. Once enabled, the pins will switch from GPIO mode to their corresponding alternate function. (A reboot is required for the changes to take effect.)
First, check the status of each device:
set-device status
Run the following command to enable i2c1. Note that a reboot is required for the changes to take effect:
sudo set-device enable i2c1

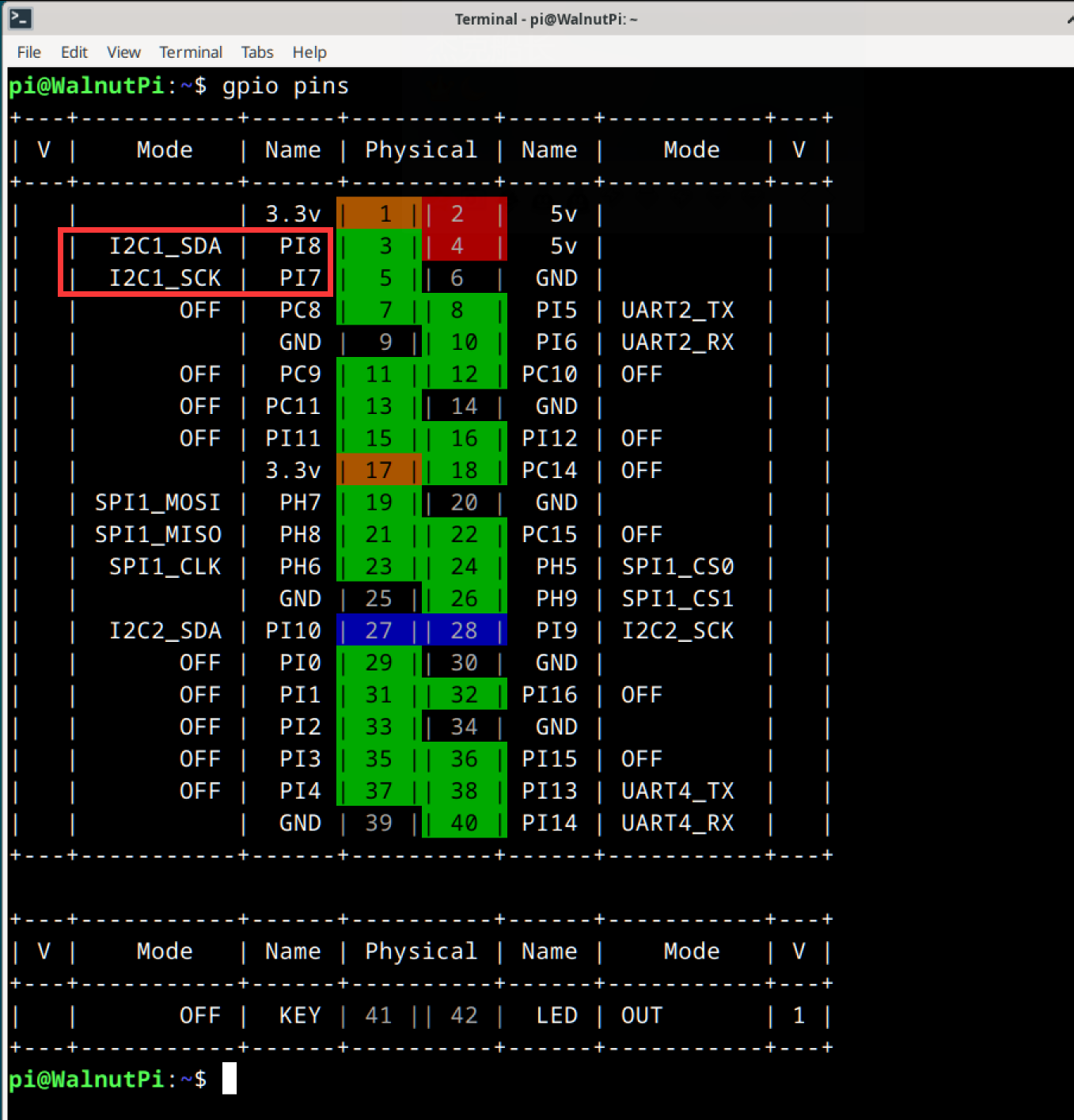

After reboot, check the pin status. You can see that pins 3 and 5 are now in I2C alternate function mode:
Also verify that the /dev/i2c-1 device file exists, as we will need to operate this file for I2C communication later:
I2C Read/Write Program
In Linux, everything is a file. The i2c1 bus is abstracted as the /dev/i2c-1 file. Open it with open, trigger read/write with ioctl, and close it with close.
1. Opening the File
In Linux, everything is a file. First, use the open function to open the device file corresponding to the device we want to operate, obtaining a file descriptor.
You'll need these header files:
#include <sys/types.h>
#include <sys/stat.h>
#include <fcntl.h>
#include <unistd.h>
Open the device node:
int fd = open("/dev/i2c-1", O_RDWR);
if (fd < 0)
{
perror("Fail to Open\n");
return -1;
}
2. i2c_msg
In Linux, I2C operations don't use write and read functions directly. Instead, they use an i2c_msg structure to configure the operations from I2C start to stop.
addr: Target addressflags: Read or writebuf: Address of the buffer. Depending on whetherflagsis read or write, after the address frame is sent, its contents will either be sent out (write) or the bus contents will be stored here (read).len: Size of the buffer
3. Writing to the I2C Bus

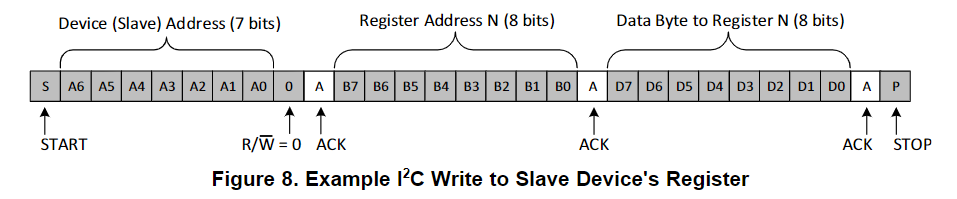

Here's the I2C timing diagram downloaded from TI:
Suppose I want to write the value 0x55 to register 0x01 on a device at address 0x3c. The msg structure should be set up as follows. addr and flags together determine the content of the first address frame. Since flags indicates a write, after the address frame is sent, the contents of buf will be sent sequentially.
First, you'll need these header files:
#include <sys/ioctl.h>
#include <linux/i2c.h>
#include <linux/i2c-dev.h>
uint8_t addr = 0x3c;
uint8_t reg = 0x01;
uint8_t value = 0x55;
uint8_t buf[2];
buf[0] = reg; // Register
buf[1] = value; // Data
struct i2c_msg msg;
msg.addr = addr; // Target address
msg.flags = 0; // Read/write flag
msg.len = 2; // buf length
msg.buf = buf;
After setting up the msg, you also need to create an i2c_rdwr_ioctl_data structure specifying how many msgs this I2C communication will handle, then use the ioctl function to trigger the I2C transaction.
struct i2c_rdwr_ioctl_data data;
data.msgs = &msg;
data.nmsgs = 1;
int ret = ioctl(fd, I2C_RDWR, &data);
if (ret < 0)
printf("i2c write failed");
return ret;
4. Reading from the I2C Bus
Here's the I2C timing diagram downloaded from TI:
Now I want to read the value of register 0x01 from a device at address 0x3c.
According to the timing diagram, two msgs are needed: the first msg is a write, with only the register number following the address frame. The second msg is a read — after the address frame is sent, the slave returns the content of that register.
uint8_t addr = 0x3c;
uint8_t reg = 0x01;
uint8_t value;
struct i2c_msg msgs[2];
msgs[0].addr = addr;
msgs[0].flags = 0;
msgs[0].len = 1;
msgs[0].buf = ®
msgs[1].addr = addr;
msgs[1].flags = I2C_M_RD;
msgs[1].len = 1;
msgs[1].buf = &value;
After setting up the msgs, you also need to create an i2c_rdwr_ioctl_data structure specifying how many msgs this I2C communication will handle, then use the ioctl function to trigger the I2C transaction.
struct i2c_rdwr_ioctl_data data;
data.msgs = msgs;
data.nmsgs = 2;
int res = ioctl(fd, I2C_RDWR, &data);
if (res < 0)
printf("Read failed\n");
return res;
5. Closing the File
Remember to call close after each open to manually close the file. Otherwise, the file descriptor will remain open until the program exits. The system limits a single process to opening at most 1024 files at once. If a program continuously calls open without close, it won't be long before it errors out and exits.
close(fd);
Example — Reading Temperature Data from MLX90614
First, read the MLX90614 datasheet to understand its read/write timing:
According to the timing given in the datasheet, we need to create two msgs. The first is a write, with the buffer containing the temperature read command 0x07. The second is a read of 3 consecutive bytes, where the first two are temperature data. Also, the MLX90614 address is 0. The final code is as follows:
#include <stdio.h>
#include <stdint.h>
#include <string.h>
#include <sys/types.h>
#include <sys/stat.h>
#include <fcntl.h>
#include <unistd.h>
#include <sys/ioctl.h>
#include <linux/i2c.h>
#include <linux/i2c-dev.h>
#define DEV_I2C "/dev/i2c-1"
// Calculate actual temperature value from MLX90614
uint16_t mlx_data_transform(uint8_t Data[3])
{
uint16_t temp;
temp = (Data[1] << 8) + Data[0]; // Combine high and low bytes
temp = temp * 2 - 27315; // Multiply by 100
return temp;
}
int main()
{
int fd = open(DEV_I2C, O_RDWR);
if (fd < 0)
{
perror("Fail to Open\n");
return -1;
}
uint8_t addr = 0;
uint8_t reg = 0x07;
uint8_t value[3];
struct i2c_msg msgs[2];
msgs[0].addr = addr;
msgs[0].flags = 0;
msgs[0].len = 1;
msgs[0].buf = ®
msgs[1].addr = addr;
msgs[1].flags = I2C_M_RD;
msgs[1].len = 3;
msgs[1].buf = value;
struct i2c_rdwr_ioctl_data data;
data.msgs = msgs;
data.nmsgs = 2;
while (1)
{
int res = ioctl(fd, I2C_RDWR, &data);
if (res < 0)
printf("Read failed\n");
printf("temp=[%d]\r\n", mlx_data_transform(value));
sleep(1);
}
}
I've written the code in a file called i2c.c. To compile it into an executable named exe, simply run:
gcc i2c.c -o exe
The execution result is shown below. The ambient temperature around me is about 30°C, rising to 34°C when my hand approaches:
