Adding Commercial Products
Xiaomi Temperature and Humidity Sensor

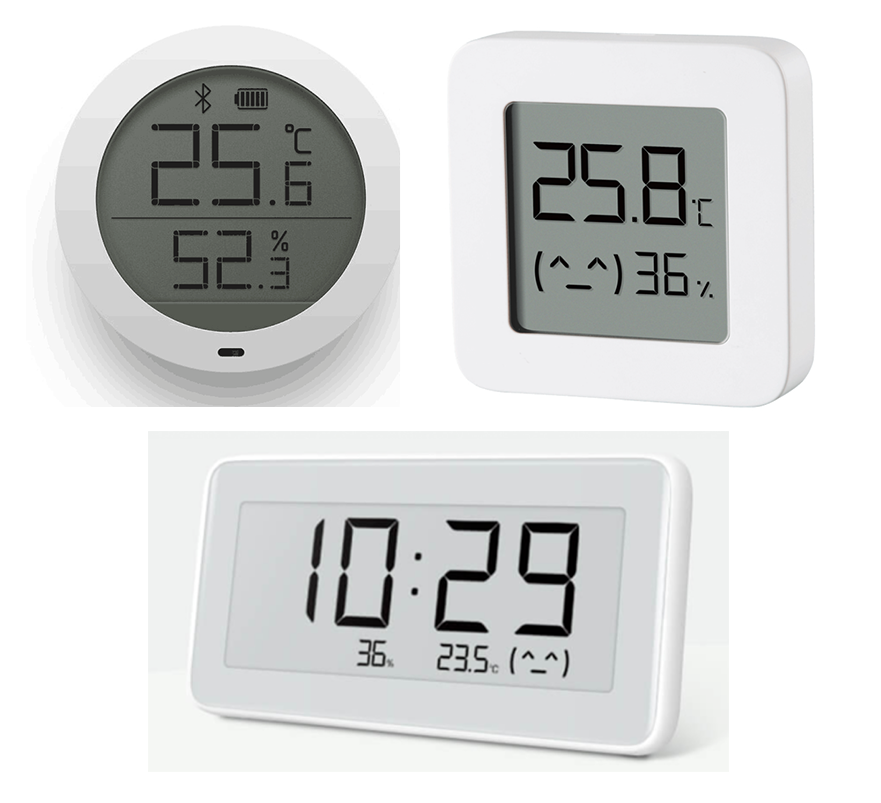

Below are several commercially available Xiaomi temperature and humidity sensors.
These types of temperature/humidity sensors broadcast information such as temperature, humidity, and battery level via Bluetooth broadcasting without requiring a connection. They can be directly discovered by the WalnutPi Home Assistant host.

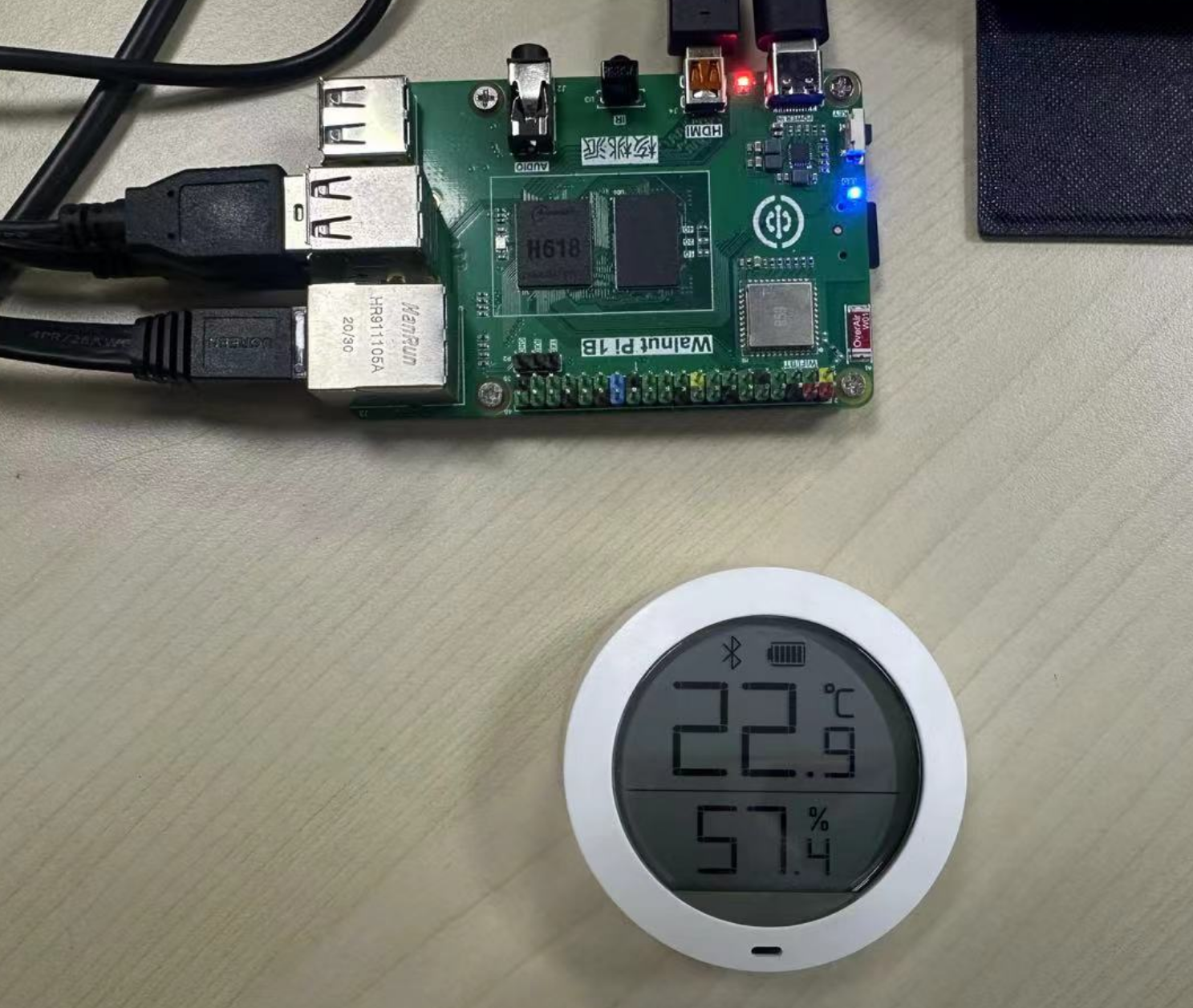

Bring the Xiaomi temperature/humidity sensor close to the WalnutPi Home Assistant host:

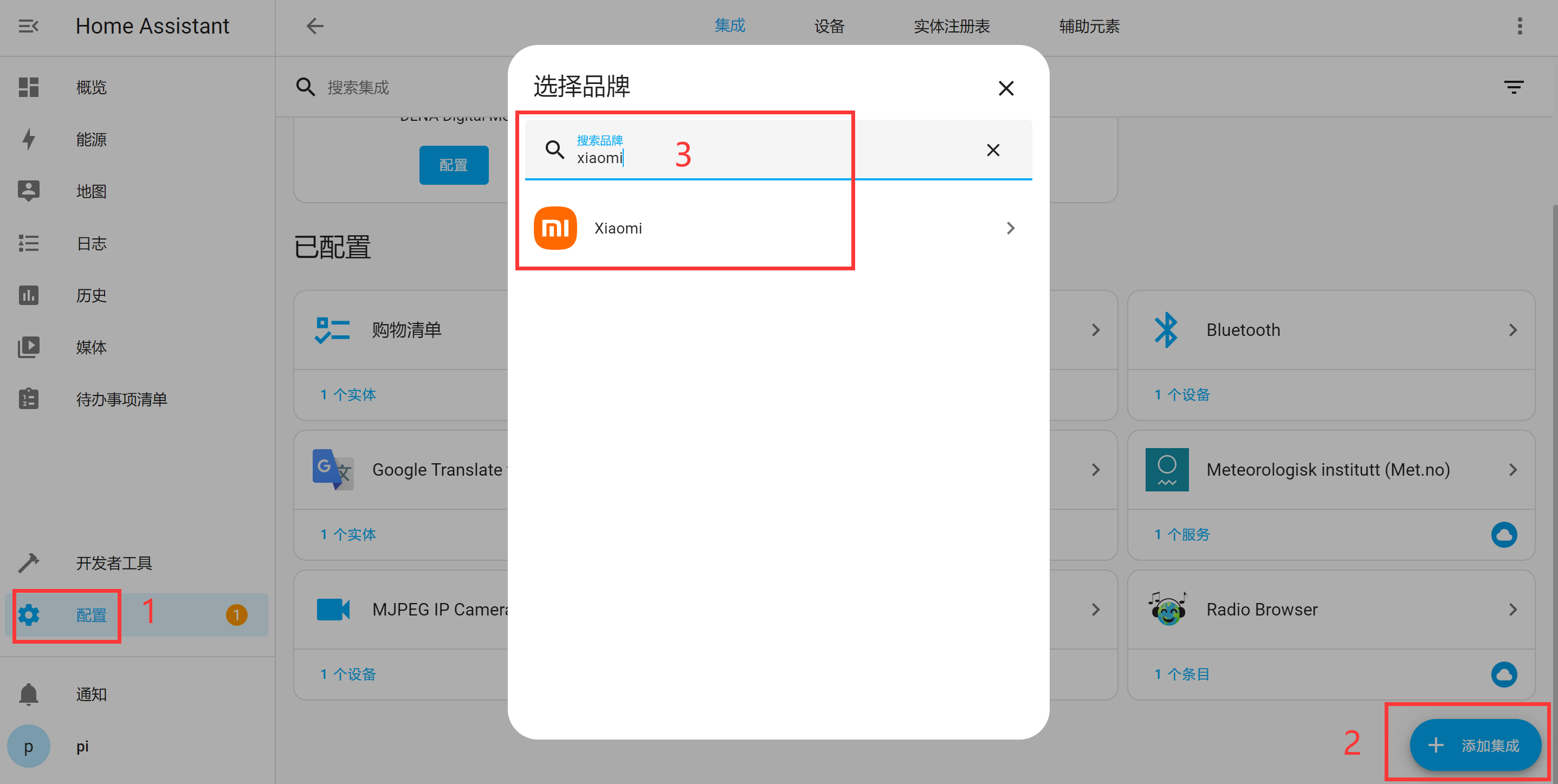

Click Configuration -- Add Integration, and search for xiaomi in the popup window:

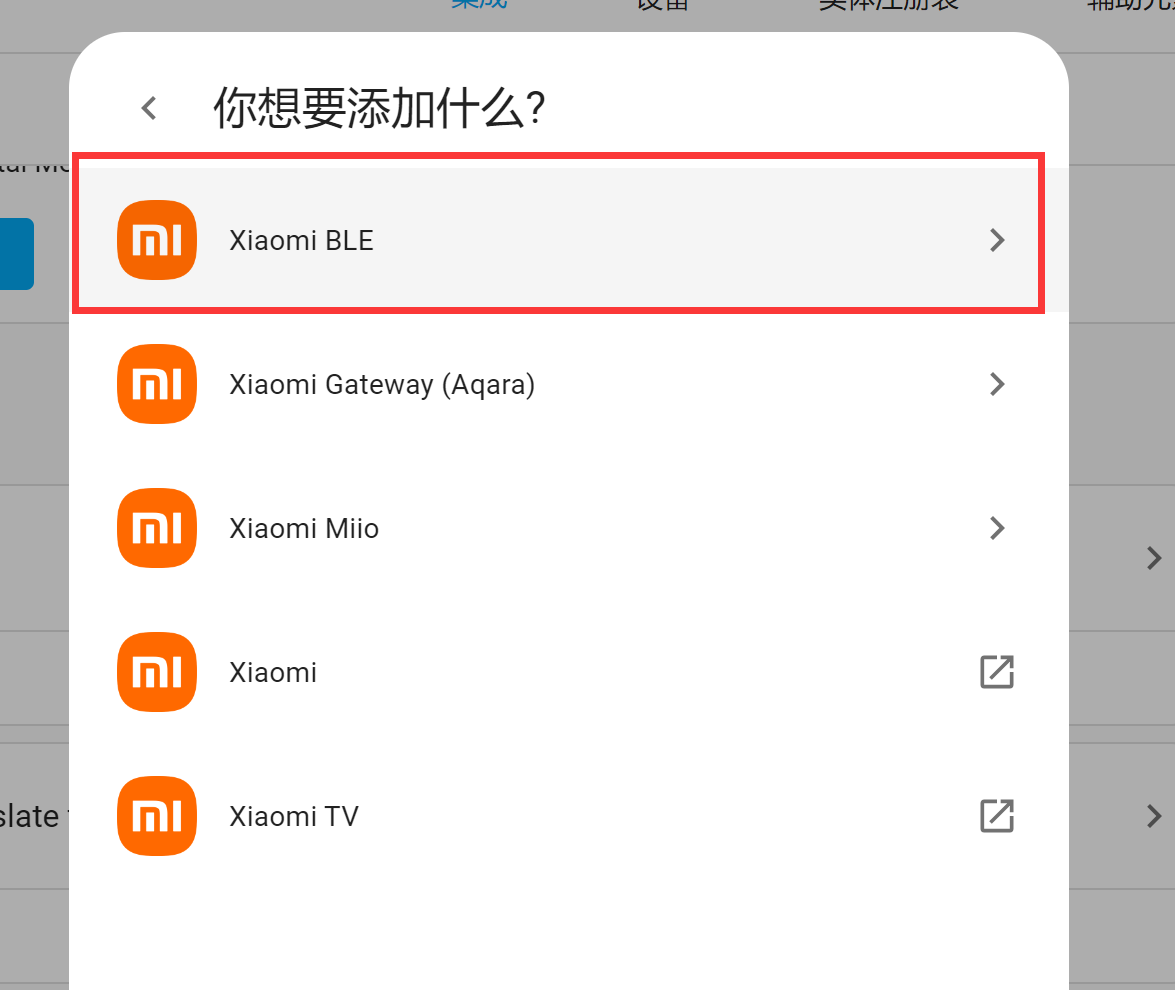

Select Xiaomi BLE:

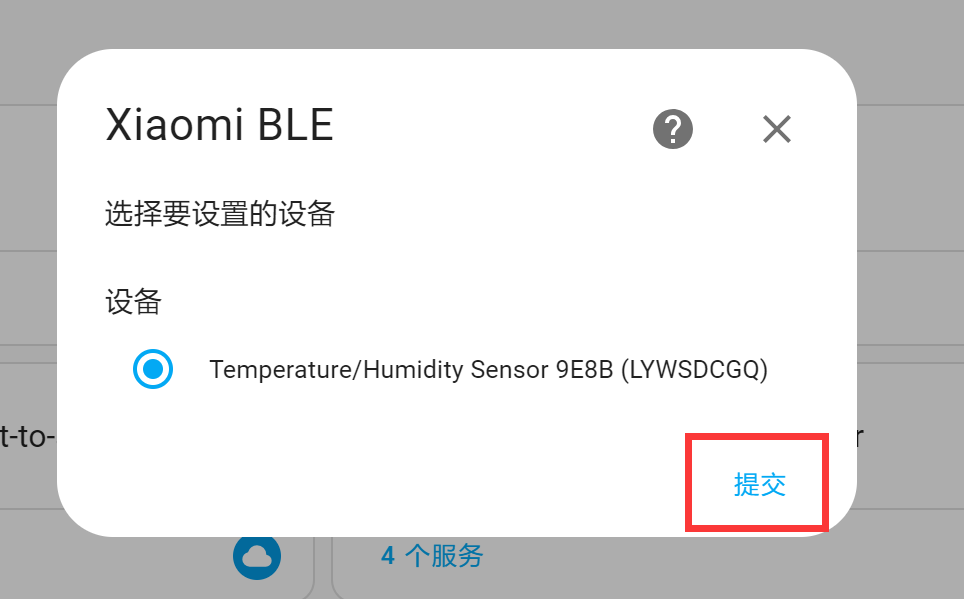

You can see that a device has appeared — click Submit.

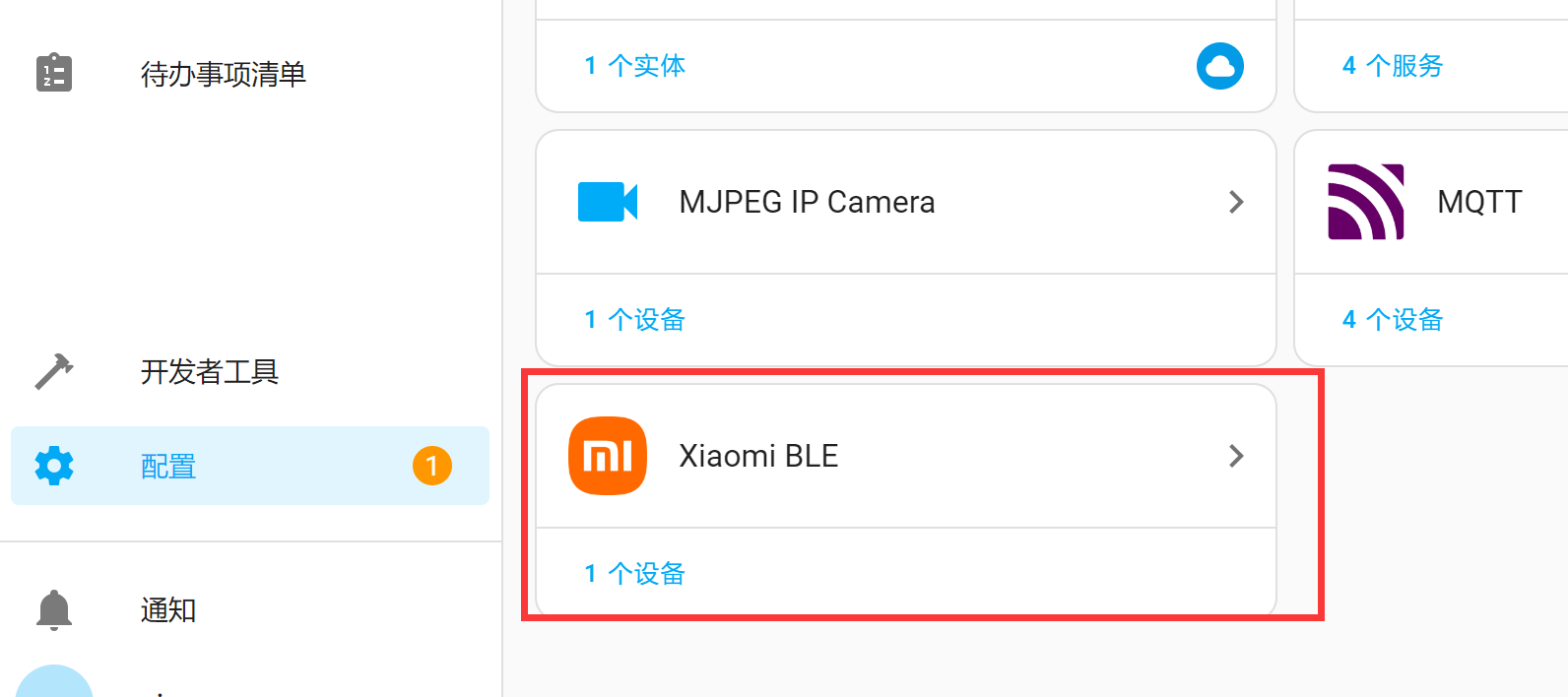

The Xiaomi BLE integration now appears in the integrations list.

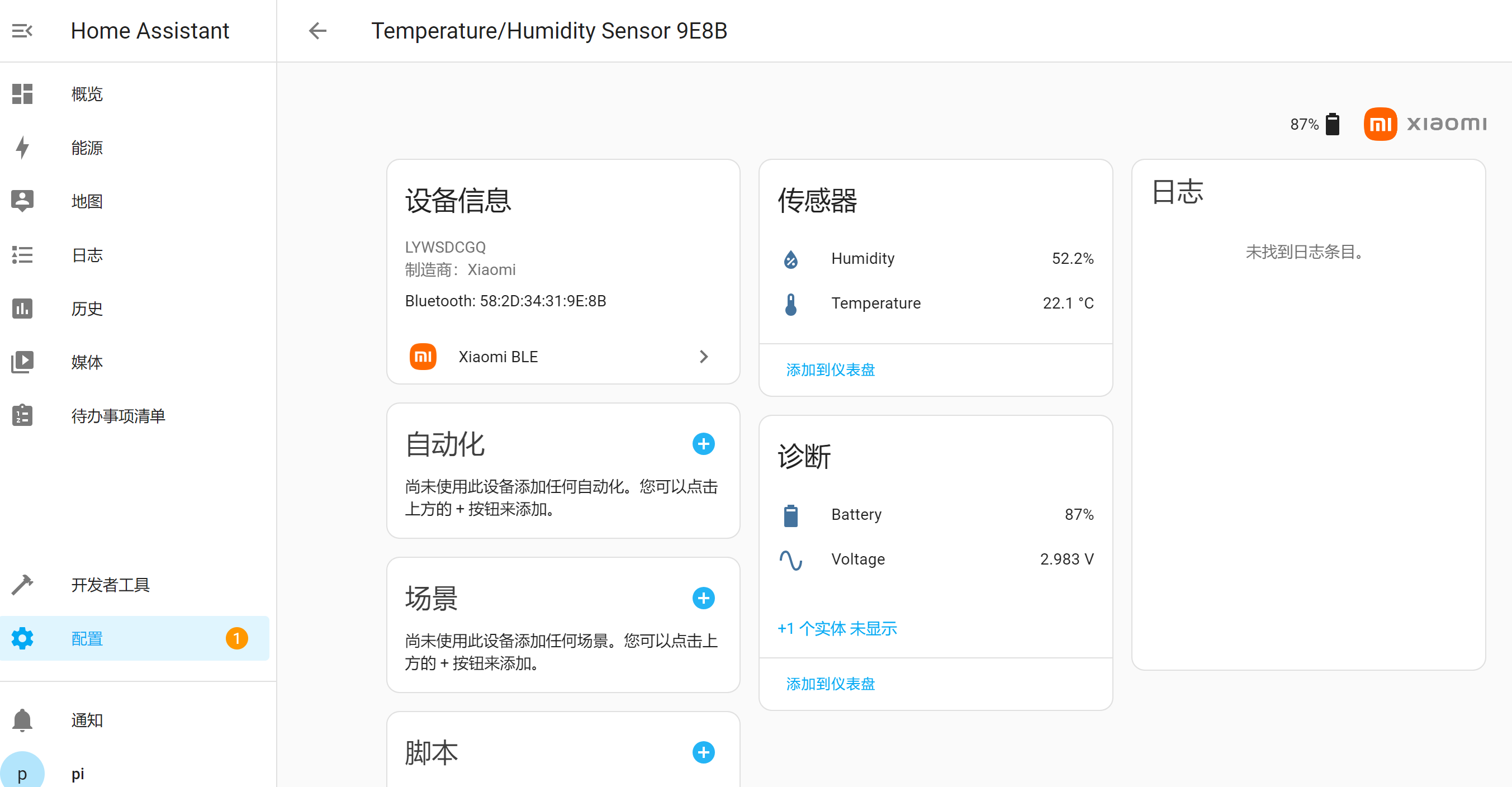

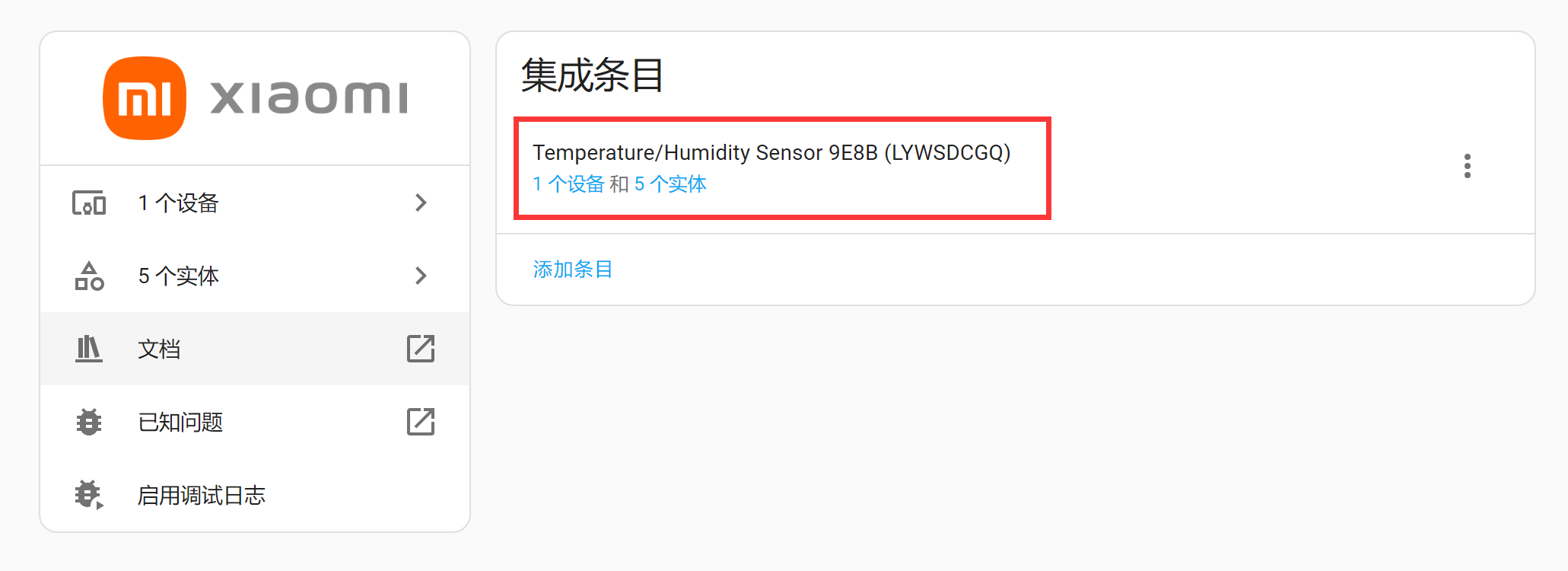

Click into it to see the associated devices and entities, then click Devices to view the data information:

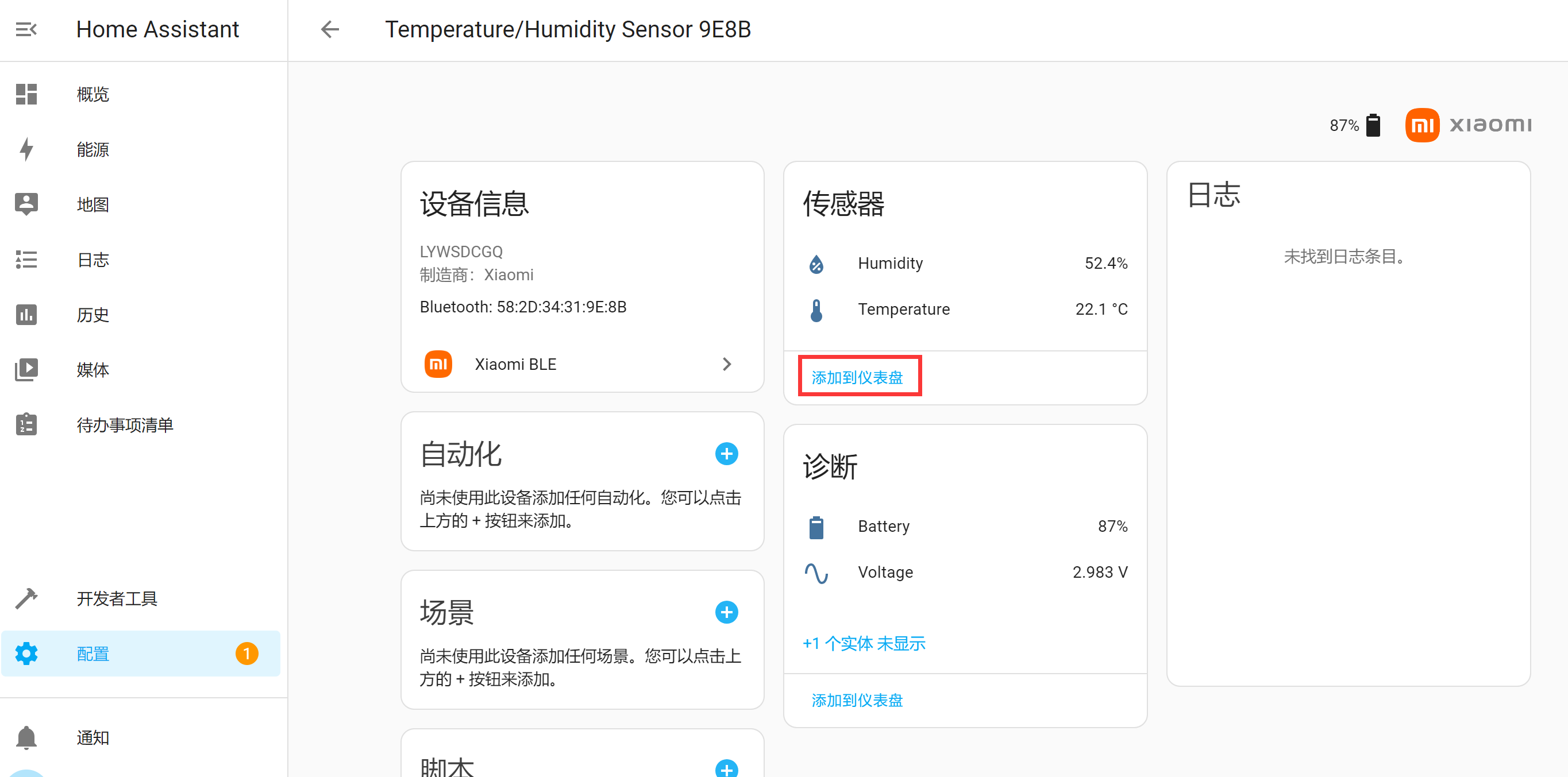

It can be added to the homepage dashboard:
