Temperature Information

The Walnut Pi 2B's T527 chip has 6 temperature sensors:

  • sensor0: CPUL (Little Core) temperature
  • sensor1: CPUB (Big Core) temperature
  • sensor2: GPU temperature
  • sensor3: NPU temperature
  • sensor4: DDR temperature
  • sensor5: PMIC temperature
Note

Temperature values retrieved by the commands below need to be divided by 1000.

CPU Temperature​

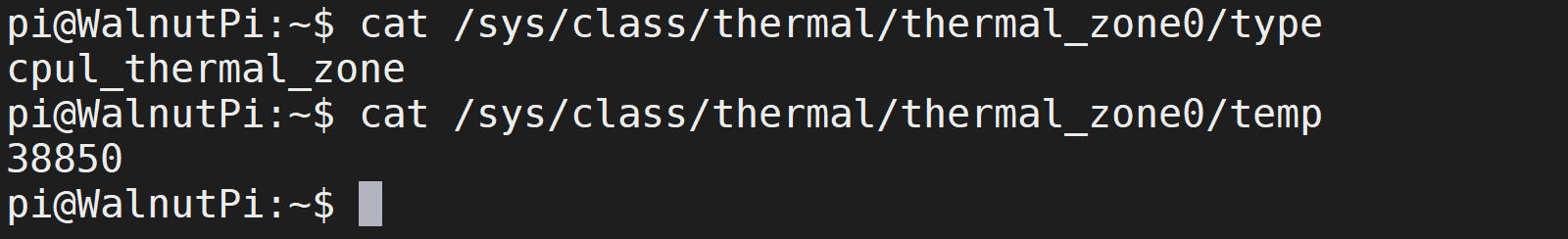

CPUL​

Check sensor type command:

cat /sys/class/thermal/thermal_zone0/type

Check temperature command:

cat /sys/class/thermal/thermal_zone0/temp

core_temp1

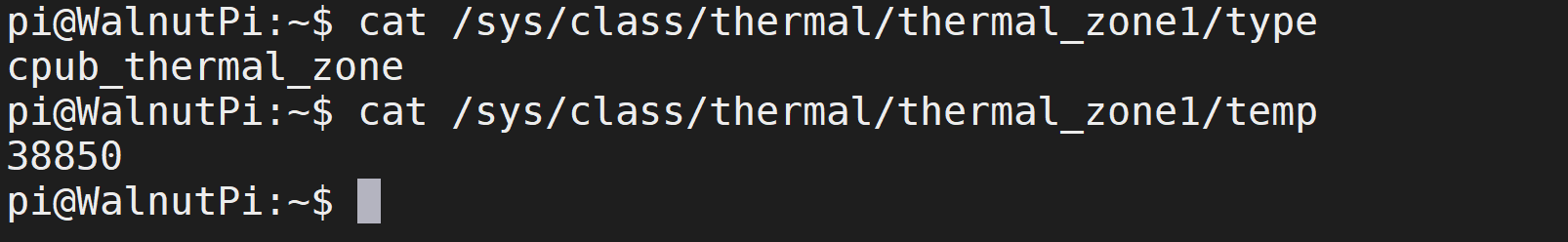

CPUB​

Check sensor type command:

cat /sys/class/thermal/thermal_zone1/type

Check temperature command:

cat /sys/class/thermal/thermal_zone1/temp

core_temp1

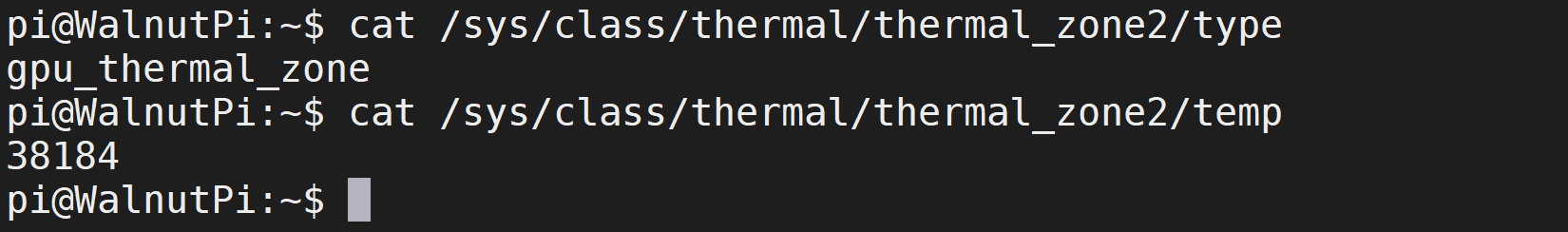

GPU Temperature​

Check sensor type command:

cat /sys/class/thermal/thermal_zone2/type

Check temperature command:

cat /sys/class/thermal/thermal_zone2/temp

core_temp2

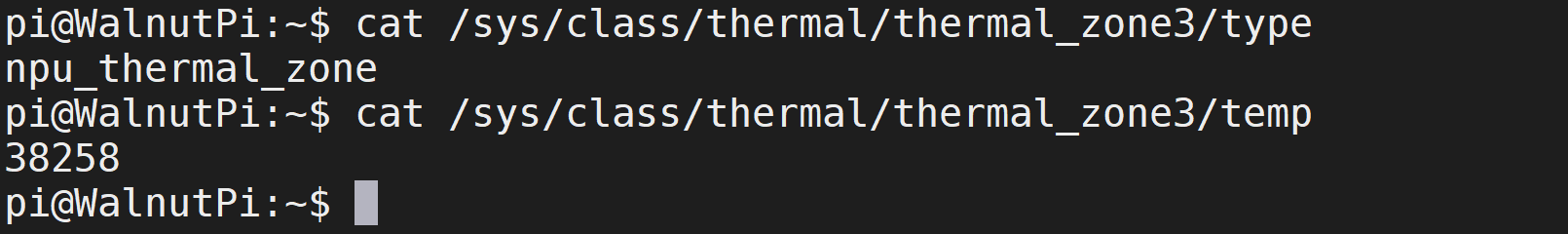

NPU Temperature​

Check sensor type command:

cat /sys/class/thermal/thermal_zone3/type

Check temperature command:

cat /sys/class/thermal/thermal_zone3/temp

core_temp3

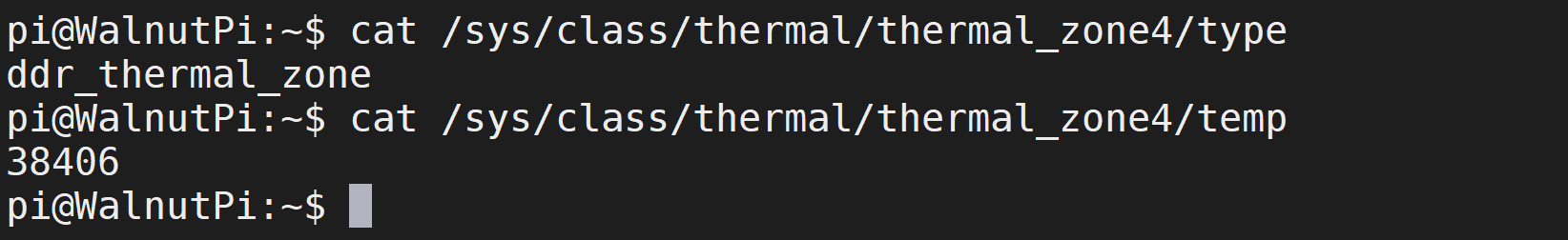

DDR Temperature​

Check sensor type command:

cat /sys/class/thermal/thermal_zone4/type

Check temperature command:

cat /sys/class/thermal/thermal_zone4/temp

core_temp4

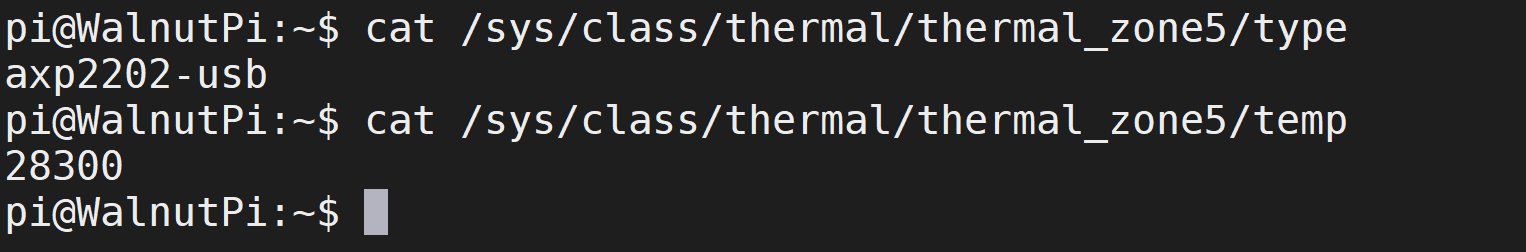

PMIC Temperature​

Check sensor type command:

cat /sys/class/thermal/thermal_zone5/type

Check temperature command:

cat /sys/class/thermal/thermal_zone5/temp

core_temp4
