CPU Temperature Information

The WalnutPi 1B's H616/H618 SoC features 4 built-in temperature sensors:

  • sensor0: CPU Temperature
  • sensor1: GPU Temperature
  • sensor2: VE (Video Encoding) Temperature
  • sensor3: DDR Temperature
Note

The temperature values obtained from the commands below need to be divided by 1000.

CPU Temperature​

Command to check sensor type:

cat /sys/class/thermal/thermal_zone0/type

Command to check temperature:

cat /sys/class/thermal/thermal_zone0/temp

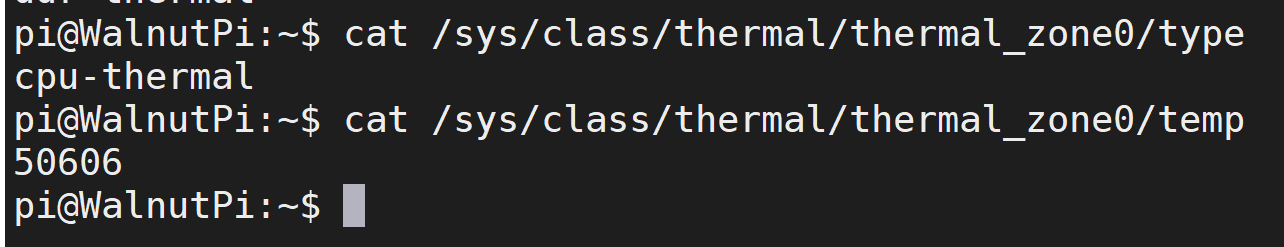

core_temp1

GPU Temperature​

Command to check sensor type:

cat /sys/class/thermal/thermal_zone1/type

Command to check temperature:

cat /sys/class/thermal/thermal_zone1/temp

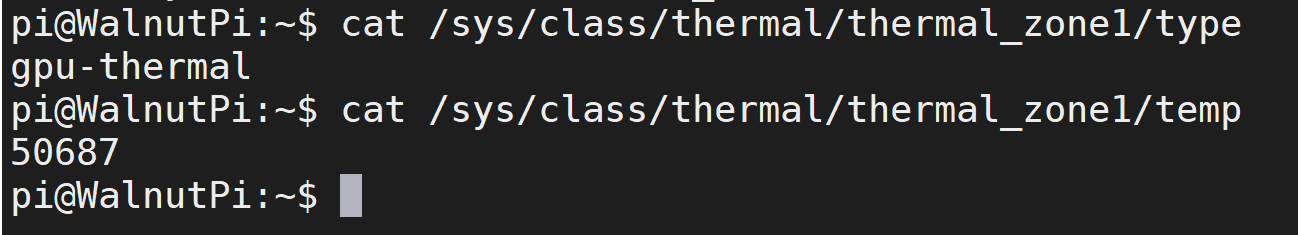

core_temp2

VE (Video Encoding) Temperature​

Command to check sensor type:

cat /sys/class/thermal/thermal_zone2/type

Command to check temperature:

cat /sys/class/thermal/thermal_zone2/temp

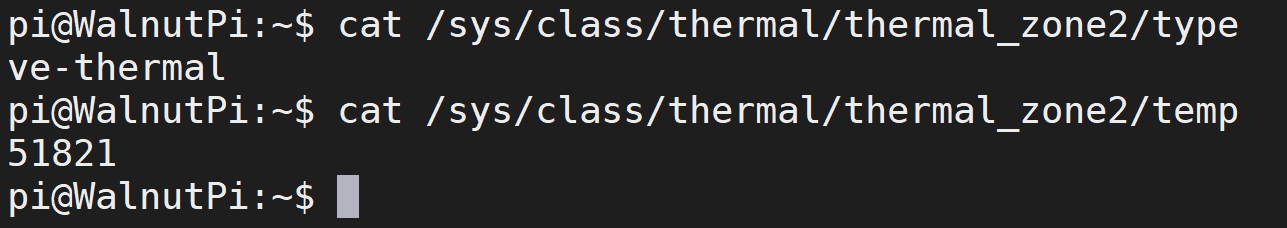

core_temp3

DDR Temperature​

Command to check sensor type:

cat /sys/class/thermal/thermal_zone3/type

Command to check temperature:

cat /sys/class/thermal/thermal_zone3/temp

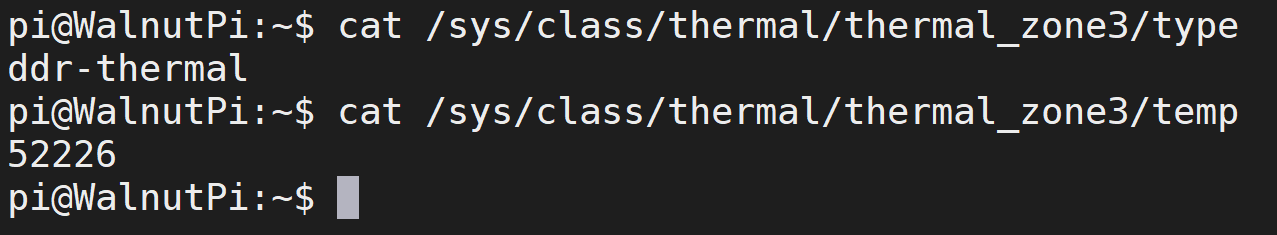

core_temp4
